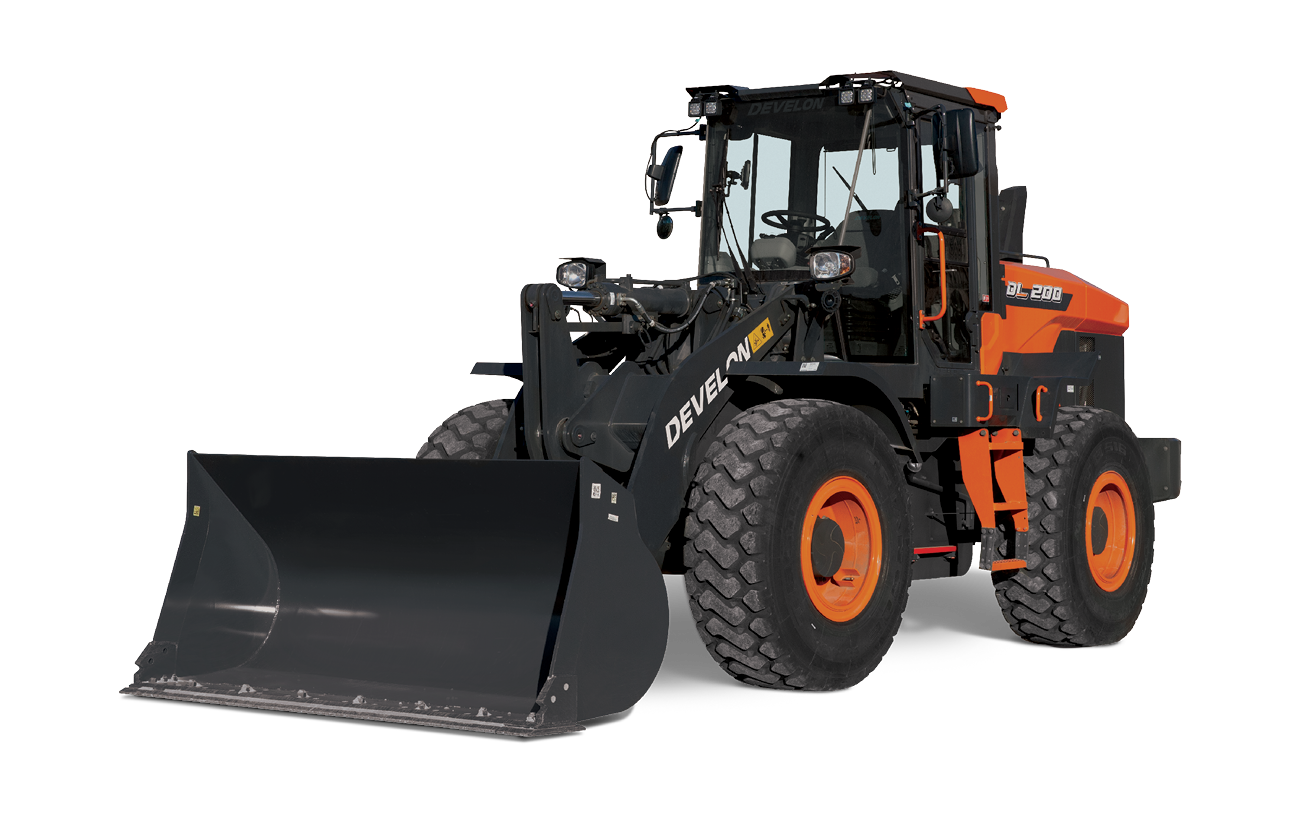

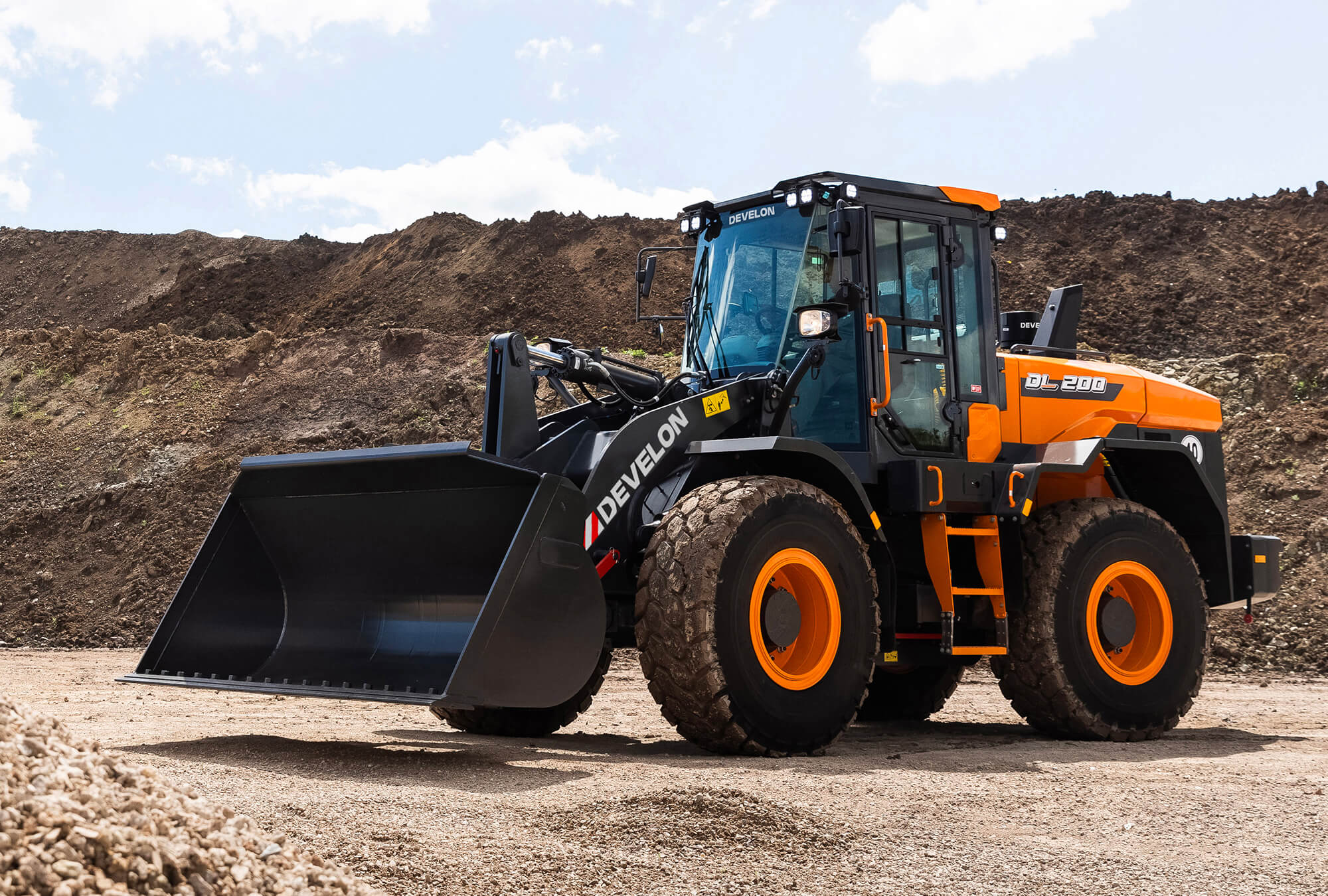

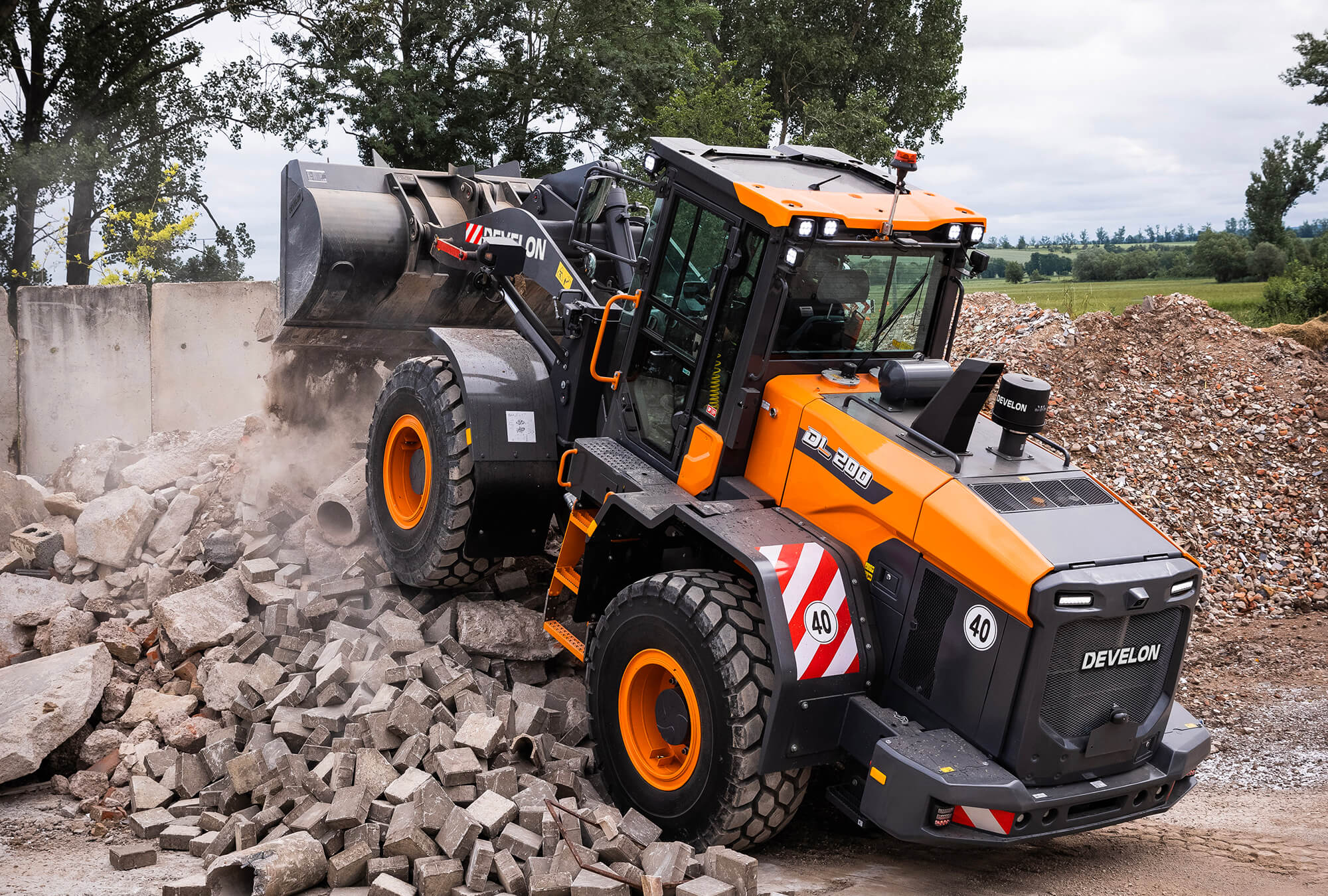

DEVELON DL200-7 Wheel Loader

The rugged 2.6-cubic-yard DEVELON DL200-7 wheel loader is ideally sized and equipped for construction and agriculture work and snow removal. It features a hydrostatic transmission (HST) for enhanced fuel efficiency, machine positional control and reduced wear on the brakes.

Limited slip differentials are included on both front and rear axles. The high-lift option provides easier loading of materials into high-sided trucks, hoppers and mixers.

An optional Load Isolation System improves stability while the machine is moving to reduce material loss.

Add the optional quick coupler to quickly change non-hydraulic attachments.

The hydrostatic transmission enables a variety of features that result in smooth, easy operation.

You can easily fine-tune the machine’s position without pressing the accelerator pedal using the convenient creep function.

Variable speed control with seven preset speeds within first gear delivers more control when doing precision work.

Load-sensing hydraulics adjust hydraulic flow to optimal levels based on working conditions for improved fuel efficiency.

Use the traction control management system to easily adjust traction force to match jobsite conditions for more efficient operation in digging, stockpiling and loading applications.

Heavy-duty Dana axles plus a standard additional counterweight help lift larger loads. The DL200-7 features wider radiator fin spacing and a standard reversible fan to clear dirt, dust and other large debris and help prevent clogging.

The durable box frame and articulating design offer excellent load distribution and rigidity.

A deeper front fender delivers additional wheel coverage for better windshield protection. A rear full fender is optional for improved machine reliability.

Experience a roomier, more comfortable cab with relocated controls that provide more intuitive use. The DEVELON Smart Touch screen displays all important settings and information, including the rearview camera view.

A DEVELON-exclusive Transparent Bucket offers a supplemental view “through the bucket” from an in-cab display.

You’ll also appreciate the all-around visibility created by the increased glass area, full glass door, larger mirrors, standard rearview camera and optional LED work lights.

An upgraded heating and air conditioning system keeps operators comfortable, and the DEVELON Smart Key offers push-button engine starts.

The DL200-7 wheel loader is easy to maintain, with its convenient component access, centralized lubrication points and accessible fluid-level checks.

With MY DEVELON fleet management, you can monitor and manage maintenance to reduce operating costs using a user-friendly mobile app and website.

To comply with Tier 4 emissions standards, the DL200-7 incorporates a high-pressure common-rail (HPCR) fuel delivery system as well as cooled exhaust gas recirculation (CEGR), combined with a diesel oxidation catalyst (DOC), selective catalyst reduction (SCR) with diesel exhaust fluid (DEF), and a Diesel Particulate Filter (DPF).

Rated Horse Power (Net): 142.1 hp @ 2200 rpm
Main Pump: Max. Flow Rate (each): 40.9 gal/min
Operating Weight: 26559 lb
Overall Height: 10' 10"
Overall Length: 23' 6"
Wheel Base: 9' 9"
External Turning Radius at Bucket Edge: 19' 2"
Static Tipping Load (Straight): 22315 lb
Differential Type: Limited Slip Front/Rear
